Concrete Laying Finishing Equipement
Concrete Processing Machine is mainly used for road maintenance work, slitting and cutting concrete and asphalt road. It's widely used for cutting concrete, masonry, brick, asphalt, tile, and other solid materials. These machines are ideal for commercial and industrial applications, with the ability to turn dull, rough, or uneven concrete surfaces into polished, visually appealing, and low-maintenance floors. Precisely engineered for efficiency, our machines provide a perfect solution for polishing large areas in minimum time and with consistent results. Be it warehouses, shopping malls, office floors, or residential areas, the Concrete Polishing Machine we manufacture provides long-lasting shine and enhanced durability for concrete surfaces. Our equipment is ruggedly built with advanced polishing technology and user-friendly features that make it reliable, efficient, and easy to operate. The perfect tool for contractors, flooring professionals, and facility managers.
Technical Variants

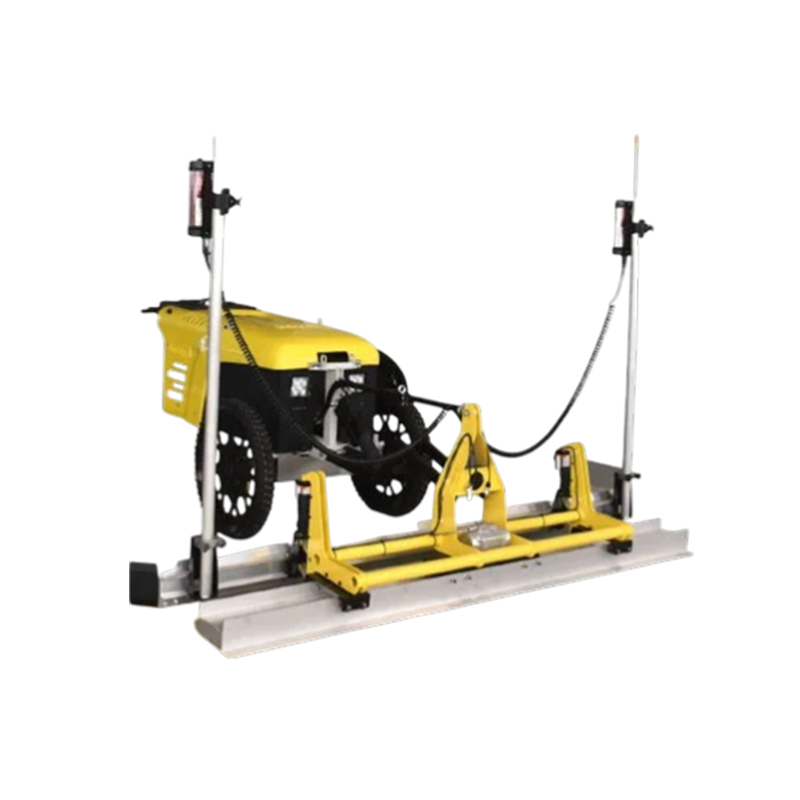

| Product Name | Laser Levelling Machine |
| Usage/Application | Concrete Floor Levelling & Industrial Flooring |
| Rated Motor Power | 5.5 HP |
| Drive Type | Electric Drive |
| Voltage | 220–240 V |
| Frequency | 50 Hz |
| Motor Phase | Three Phase |
| Surface Recommendation | Concrete & Industrial Flooring |
| Weight | 280 kg |
| Country of Origin | Made in India |
| Specification | Details |
| Model | FBF33 |
| Blade Size (mm) | L x 200 x 2.8 |
| Handle Length | 1800mm/pс |
| No. of Handle | 3 pcs |
| Material of Blade | Magnesium/Aluminium Alloy |
| Material of Handle | Stainless Steel |
| Bracket | Included |
| Specification | Details |

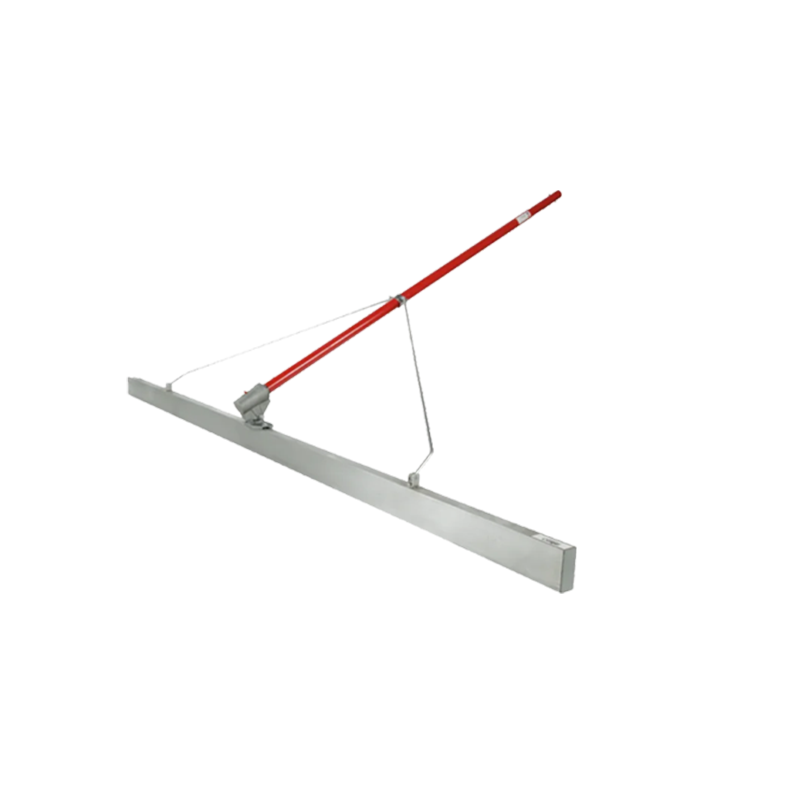

| Model | FCR33 |
| Blade Size (mm) | 3000 x 100 x 50 |
| Handle Length | 1800mm/pс |
| No. of Handle | 3 pcs |
| Material of Blade | Aluminium Alloy |
| Material of Handle | Stainless Steel |
| Bracket | Included |
| Specification | Details |

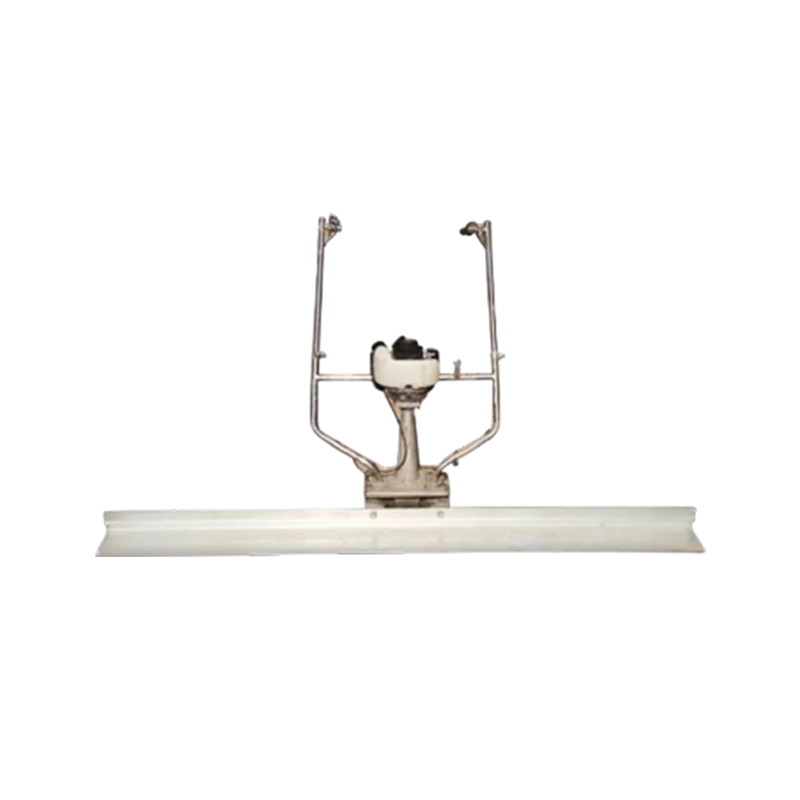

| Model | CVS-25 Screed Vibrator |
| Blade Size | 2MTR, 3MTR |
| No. of Handle | 1 |
| Material of Blade | Magnesium /Alloy |
| Drive Mode | Flexible Shaft |
| Power | Honda GX35 / Imported Motor |
| Bracket | - |
| Specification | Details |
| Model | COF 20 |
| Blade Size | 12-20 in |
| Cutting Depth | 160 mm |
| Engine Type | Honda /greaves/electric motor |
| Power/HP | 5/9 hp |
| Water Tank | 35 ltr |
| Weight | 95 kg |
| Specification | Details |
| Model | QUM-96 |
| Working Diameter (mm) | 2440x1140 |
| Engine Type | Dynamic R-999 |
| Max. Output (Hp) | 36 |
| Weight (Kg) | 435 |
| Dimension (mm) | 2540 x 1240x1510 |
| Fuel Tank Capacity | 40 Itr |

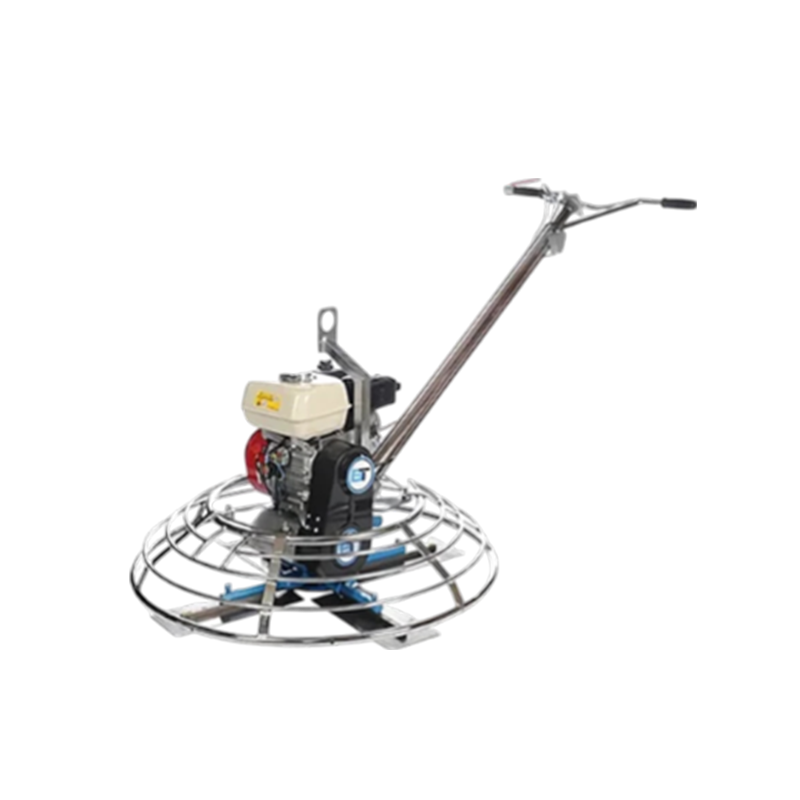

| Usage/Application | Power Trowel |
| Working Diameter | 900–1000 mm |
| Dimensions | 1800 × 1000 × 1050 mm |
| Engine Power | 8 – 10 HP |
| Brand | Topall Impex |
| Fuel Tank Capacity | 3 – 5 L |
| Pan Quantity | 1 Piece |
| Blade Quantity | 4 – 6 Blades |
| Working Speed | 70–140 RPM |
| Country of Origin | Made in India |
| Model | QJM 600 |
| Working Diameter (mm) | 600 |
| Engine Type | Honda GX 160 |
| Brand | Topall Impex |
| Weight (Kg) | 60 – 75 kg |
| Dimension (mm) | 1200 × 600 × 900 mm |

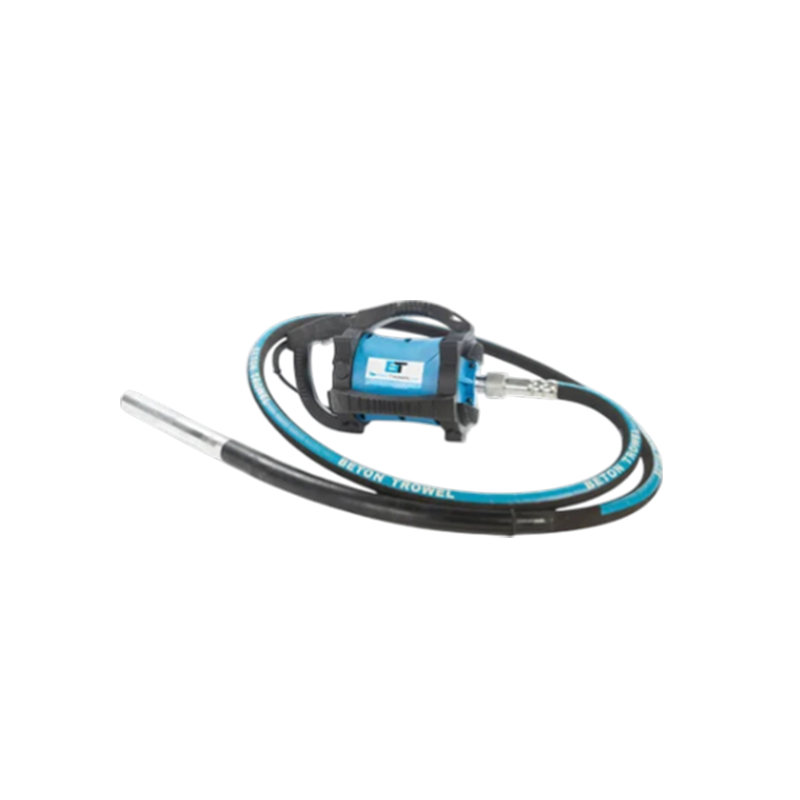

| Product Name | High Frequency Vibrators |
| Usage/Application | High Frequency Vibrators |
| Input Voltage | 220 – 415 V |
| Model Name/Number | HVU110 |
| Brand | Topall |
| Output Power | 1.1 kW |
| Input Phase | Three Phase |
| Speed | 12,000 – 14,000 RPM |
| Phase | 3 |
| Country of Origin | Made in India |
| Usage/Application | Hardener Spreader |
| Automation Grade | Semi Automatic |
| Product Type | Surface Finishing Equipment |
| Brand | Topall |
| Capacity | 25–50 kg |
| Material | Mild Steel / Aluminium Body |
| Working Width | 600–1000 mm |
| Minimum order quantity | 1 Number |
| Country of Origin | Made in India |
| Usage/Application | Walk Behind Laser Screed Machines |
| Rated Motor Power | 5.5 – 7.5 HP |
| Surface Recommendation | Concrete Industrial Flooring |
| Drive Type | Hydraulic |
| Power Supply | 380–415 V AC |
| Motor Phase | Three Phase |
| Weight | 250 – 320 kg |
| Brand | Topall Impex |
| Country of Origin | Made in India |

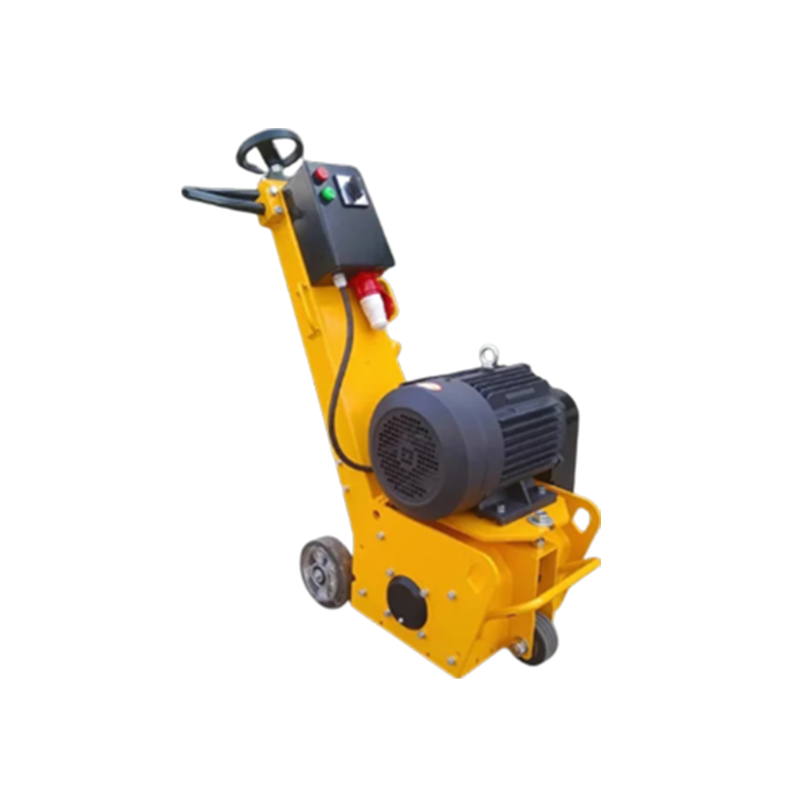

| Specification | Details |

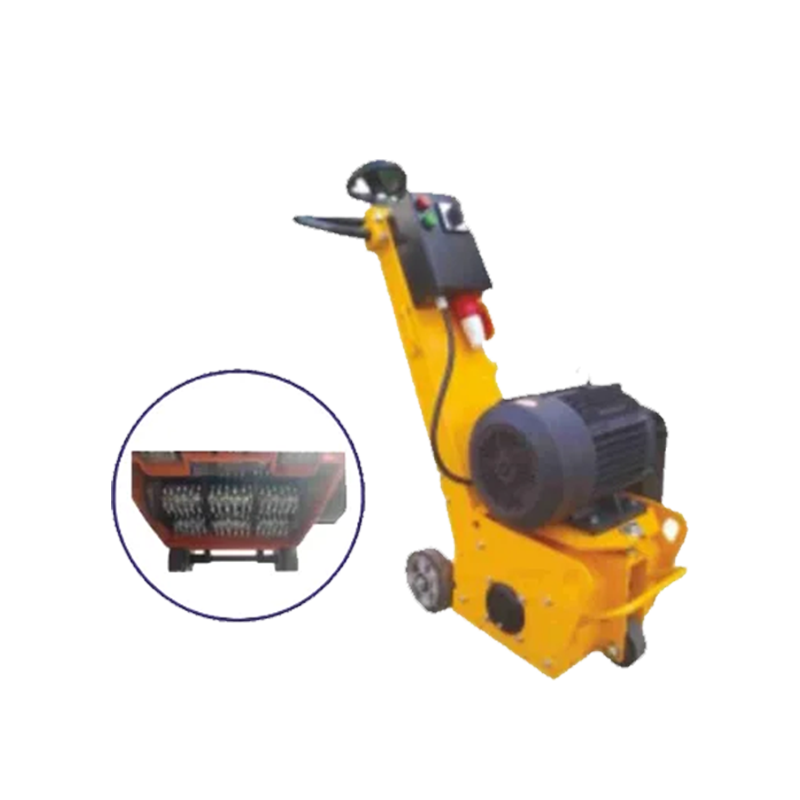

| Model | GT 250 |
| Weight (KG) | 140 |
| Dimension (MM) | 1050 500x100 |
| Working Width (MM) | 250 |
| Milling Depth (MM) | 1~4 |
| Voltage | 415V, 50/60 Hz, 3 phase |
| Cutter Quantity (PCS) | 108 |
| Specification | Details |

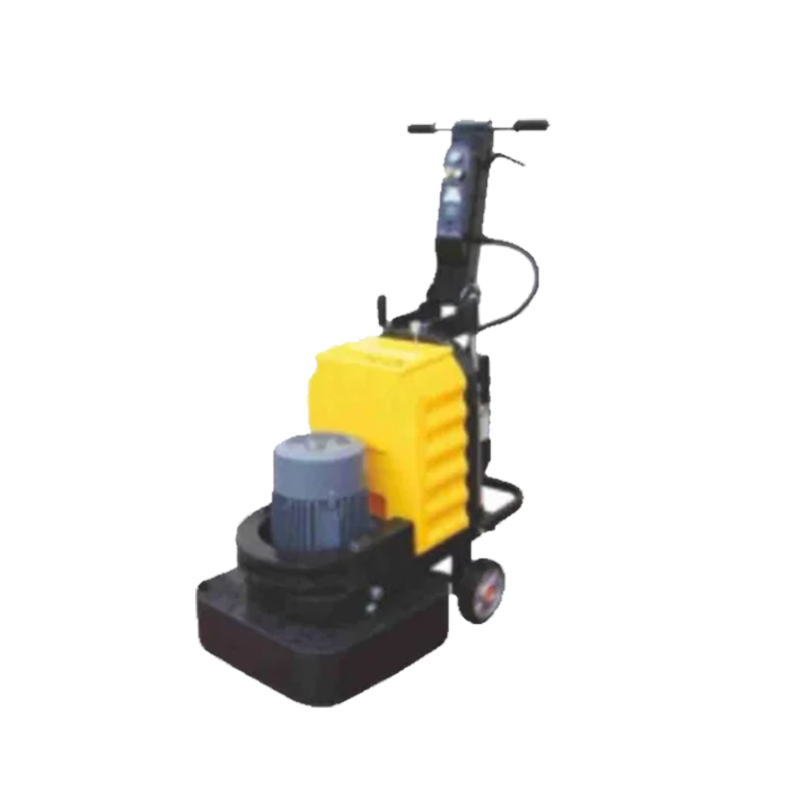

| Model | GT-630 |
| Weight (KG) | 240 |
| Voltage (V) | 380 |
| Working Width (MM) | 600 |
| Inverter (KW) | 7.5 |
| Motor Power (KW) | 7.5 |
| Mill Speed (RPM) | 0-1800 |
| Specification | Details |
| Model | GT460 |
| Motor Power | 4KW |
| Inverter | 14401/min. |
| Power | 380V |
| Weight | 165KG |
| Vaccum Motor Power | 1.8Kw |
| Dimension (LWH) | 1100 x 460 x 980 |
| Working width | 460 MM |
| Grinding wheels | 6 pcs |
| Specification | Details |

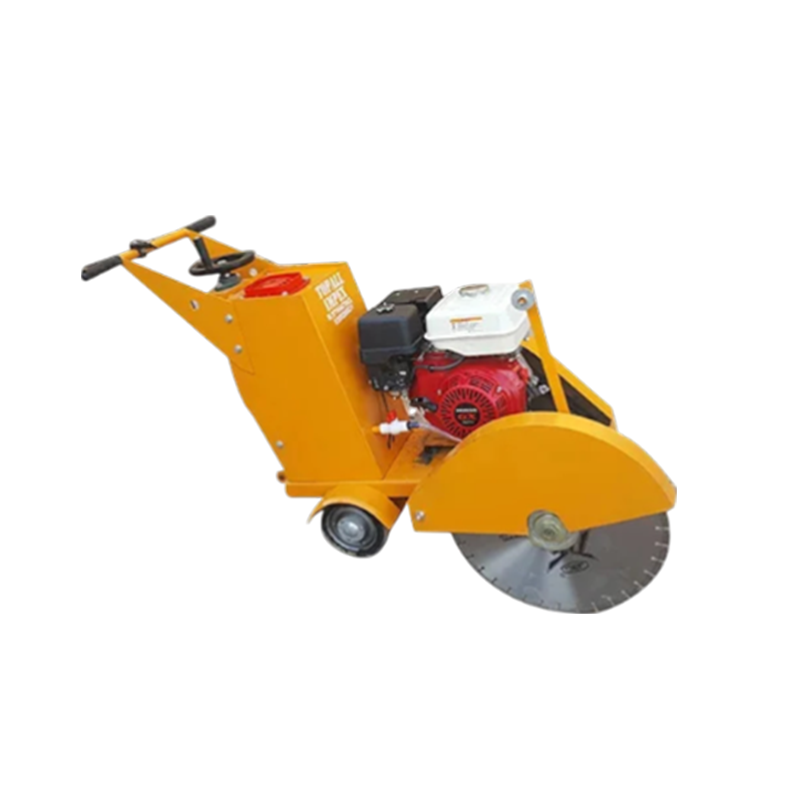

| Model | CQF 28 |
| Max Blade Size (Inch) | 16-28 |
| Max Cutting Depth(mm) | 220 |
| Power Type | ENGINE / MOTOR |
| Max Power (hp) | 7.5/10/15 |
| Water Tank (Itr) | 30 |
| Depth Adjustment | Handle Rotation |
| Weight (KG) | 160 |
| Engine / Moto | Greaves/ VST Shakti/ Crompton |
| Specification | Details |
| Model | QUM-80 |
| Blade Quantity | 8 Pcs |
| Pan Quantity | 2 Pcs |
| Working Speed | 120-140rpm |
| Working Diameter | 1900x915mm |
| Engine | Honda GX690 24HP |
| Max Speed | 3600rpm |
| Fuel Tank | 12Ltr |
| Disc Dia | 940mm |
| Spare Parts | Combination Blade |
| Pan | Made of 3mm Thickness, Manganese Steel 2 Pcs. |
| Dimension (mm) | 1980x996x1320 |
| Weight (KG) | 310 |
| Specification | Details |
| Model | CWT 40 |
| Working Diameter (mm) | 1000 |
| Engine Type | Honda GX 160 |
| Max. Output (Hp) | 5.5 |
| Weight (Kg) | 85 |
| Specification | Details |

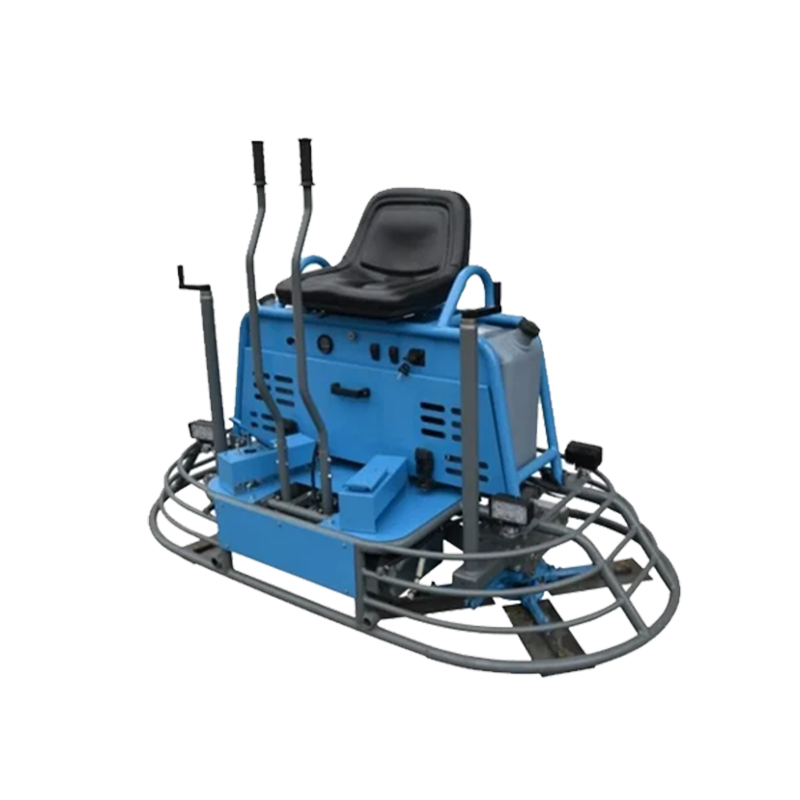

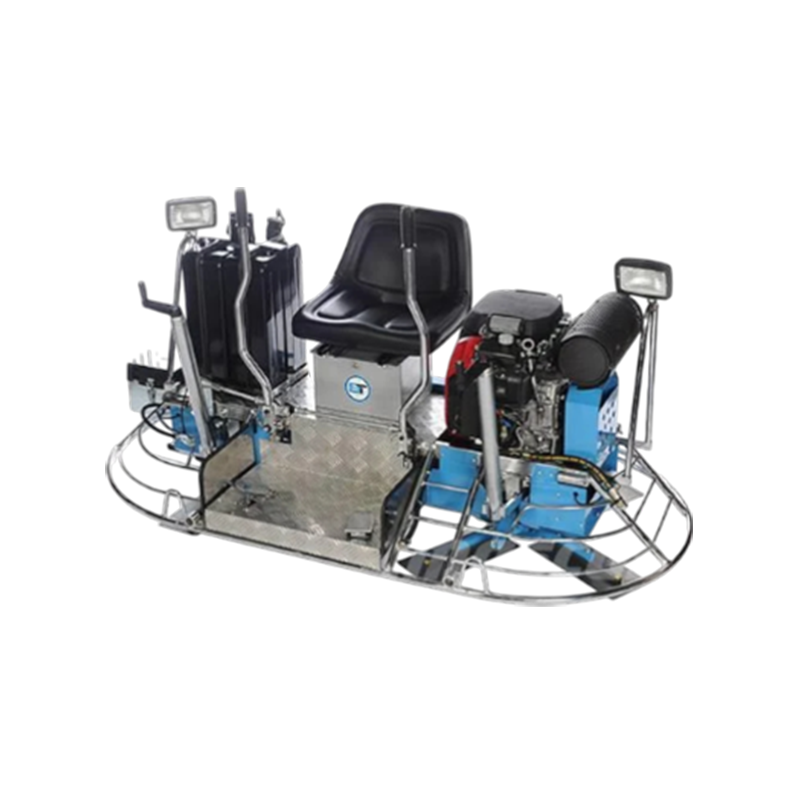

| Model | BT 900 - 2PF H24 |
| Type | BT Low Riders |
| Engine Type | Honda GX 690, 24HP |
| Blade Rotation Speed | 0-140 Rpm |
| Float Pans | Yes |
| Blades | 8 pcs |
| Dimensions (mm) | 1940×990×1040 |
| Weight Dry (kg) | 275 |
| Usage/Application | Used For Finishing Concrete By Smoothing And Compacting The Surface |
| Model | BT-60H |
| Voltage | 240 V |
| Speed | 300 rpm |
| Working Diameter (mm) | 600 mm |
| Engine Type | Honda GX 160 |
| Power Source | Electric |
| Weight (Kg) | 60 – 75 kg |
| Dimension (mm) | 1200 × 600 × 900 mm |
| Specification | Details |
| Model | BT-90H (Trowel) |
| Working Diameter (mm) | 900 |
| Engine Type | Honda GX 160 |
| Max. Output (Hp) | 5.5 |
| Weight (Kg) | 120 |
| Dimension (mm) | 1280×945×980 |

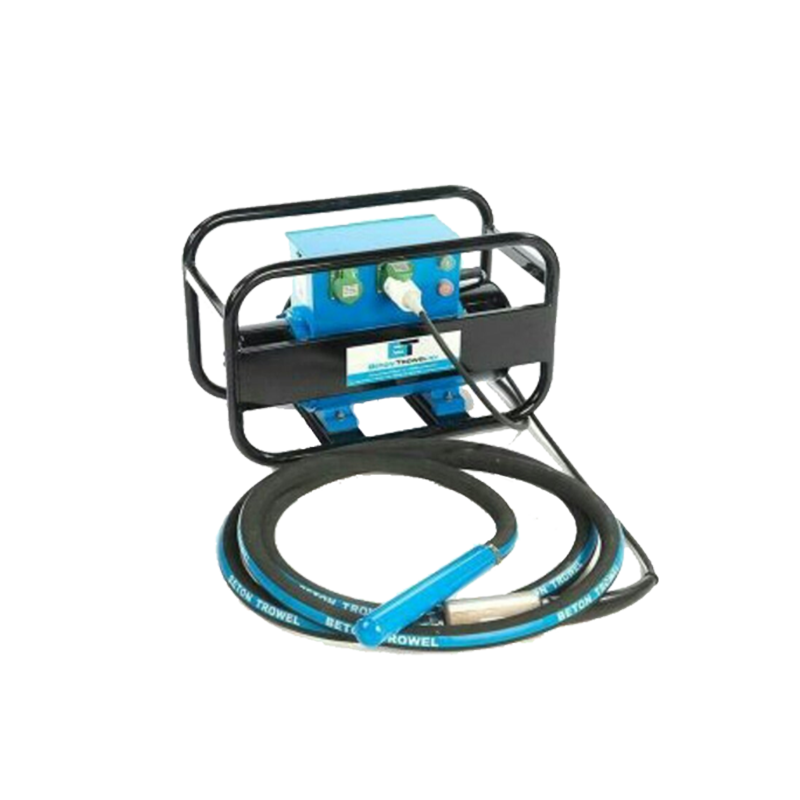

| Model | BTFC/45/4, BTFC200/18/2 |
| Capacity | 2–15 kVA. |
| Input (Phase/Hz/V/A) | 3 Phase / 50 Hz / 380–415 V / 63–300 A |
| Output (Phase/Hz/V/A) | 3 Phase / 200 Hz / 42–48 V / 80–400 A |
| Weight | 120 – 250 kg |
| Units Driving | 2 Needles, 4 Needles |
| Model | HVU110, HVU220 |
| Voltage | 380–415 V AC. |
| Power (Kw) | 1.1 kW / 2.2 kW |
| Motor Speed | 12,000 – 14,000 RPM |
| Weight | 12–18 kg (HVU110) / 18–25 kg (HVU220) |
| Usage/Application | Material Spreador |
| Material | Stainless Steel |
| Brand | BT2WMS |
| Automation Grade | Semi Automatic |
| Product Type | Hardner Material spreader |
| Roller Type | Semi Automatic |
| Capacity | 100 kg |
| Country of Origin | Made in India |
| Model | LS-325 |
| Generator | 5 – 7.5 kVA Diesel Generator |
| Package | Box 1:2700*1050*1350mm Box2:2900*750*320 |
| Laser Generator | High Precision Rotary Laser |
| Laser Receiver | Digital Laser Receiver System |
| Control System | Automatic Hydraulic Control System |
| Driving System | Hydraulic Drive |
| Airframe Adjustment | Automatic Level Adjustment |
| Slope Working | 0 – 10% Adjustable |
| Wheel Tyre | Heavy Duty Pneumatic Tyres |
| Vibrating System | Hydraulic Vibration System |
| Centrifugal Force | 15 – 30 kN |
| Brand | Topall Impex |
| Scraper Blade | Adjustable Steel Blade |
| Scraper Adjustment | Hydraulic Adjustable |
| Working Length | 2500 – 3000 mm |
| Reverse Speed | 0 – 3 km/h |
| Min. Ground Clearance | 200 mm |
| Ground Flatness | ±2 mm |
| Max Working Radius | 300 m |
| Working | Continuous Laser Controlled |
| Dimension (L*W*H) | 3500 × 2500 × 2000 mm |
| Weight | 800 – 1200 kg |
| Specification | Details |
| Model | LS-400 |
| Engine Model | Honda GX-690 |
| Engine Type | Petrol, V-cylinder engine, air cooling |
| Engine Power (Hp) | 24 |
| Laser Generator | Topcon |
| Lubricating Oil (L) | 2 |
| Fuel Tank Capacity (L) | 35 |
| Type of Leveling | Independent suspension, center rotation |
| Paving Width (mm) | 2500 |
| Paving Way | scraper blade paving |
| Paving Thickness (mm) | 30-200 |
| Boom Motor | High torque hydraulic motor |
| Vibrating System control | Vibrating motor |
| Exciting force (kg) | 100 |
| Vibrational Frequency (hz) | 50 |
| Laser System Control Type | Laser Scanning+ High Sensitivity DC Push road |
| Laser System Control Effect | Flat surface, slope Floor |
| Driving System | Hydraulic driving tyre |
| Wheel | Heavy-duty tyre |
| Walking Speed (km/h) | 0-2.5 |
| Forward/backward | Switch Control, Stepless speed |
| Turing | Switch Control |
| Dimension (mm) | 3155x3175 1910 |
| Weight (kg) | 865 |
| Model Name | Concrete Paver XP-900 |
| Engine Type | Honda GX690 Petrol Engine |
| Engine Power | 24 HP (17.9 kW) |
| Starting System | Electric Start |
| Trowel Diameter | 2 × 900 mm |
| Number of Blades | 8 Blades |
| Blade Speed | 70–150 RPM |
| Drive System | Mechanical / Hydraulic |
| Fuel Tank Capacity | 20–25 L |
| Weight | 320–380 kg |
| Specification | Details |
| Model | BT-60H (EDGER) |
| Working Diameter (mm) | 600 |
| Engine Type | Honda GX 160 |
| Max. Output (Hp) | 5.5 |
| Weight (Kg) | 53 |
| Dimension (mm) | 1460×660×980 |
| Model | BT Floater 100 |
| Engine Type | Petrol Honda GX160 |
| Power | 5.5 – 6.5 HP |
| Working Width | 1000 mm |
| Blade Size | 350 mm x 150 mm |
| Blade Quantity | 4 |
| Fuel Tank Capacity | 3.6 – 5.0 L |
| Weight | 70 – 90 kg |
| Speed | 60–130 RPM |
| Application | Concrete Surface Floating & Finishing |
| Specification | Details |
| Model | GX65 |
| Motor Power | 9.5 KW/13 Hp |
| Working Width | 638 mm |
| Input Voltage | 380 V 3 Phase (20A) |
| Invertor Power | 11 Kw/15 Hp |
| Rotating Speed | 350-1680 rpm |
| Weight | 305 kg |
| Dimension (cm) | 146 × 88 × 132 |
| Specification | Details |
| Model | HTG IVC-33L |
| Motor Power | 3.3 Kw/4.5 Hp |
| Input Voltage | 220 v/110 v |
| Air Sunction | 537 m3/h |
| Hose Diameter | 50/63/80 mm |
| Total Weight | 105 kg |
| Cleaning Way | By Stretch |
| Packing Size (cm) | 88 × 77 × 123 |
| Specification | Details |
| Model | S300 |
| Working Width | 300 mm |
| Motor Power | 5 Hp |
| Voltage | 380V 3 Phase 50Hz |
| Rotating speed | 1450 rpm |
| Weight | 102 kg |
| Air Flow Rate | 180 m3/h |
| Air Pressure | 207 mBar |
| Vacuum Voltage | 220V 4.5 A |
| Capacity | 16L |
| Packing Size (cm) | 120 × 42 × 95 |
| Model | HTG-820C |
| Type | Autopilot Planetary Grinder |
| Working Width | 820 mm |
| Grinding Disc | 3 × 270 mm Discs |
| Voltage | 380 – 415 V |
| Motor Power | 15 – 18 kW |
| Rotation Speed | 300 – 1800 RPM |
| Weight | 480 – 550 kg |
| Water Tank Capacity | 30 – 40 L |
| Application | Concrete Floor Grinding & Polishing |
| Model Name | IVC-45L |
| Type | Industrial Dust Collector / Vacuum Cleaner |
| Motor Power | 5.5 kW (7.5 HP) |
| Voltage | 380–480 V, 3 Phase |
| Filtration System | HEPA H13 + Pre-Separator |
| Vacuum Pressure | 30–35 kPa |
| Maximum Air Flow | 600 m³/h |
| Filter Cleaning | Manual Filter Cleaning |
| Dust Collection | Continuous Drop-Down Dust Bag |
| Brand | Topall Impex |
| Specification | Details |
| Model | 955 LE |
| Working Width | 955 mm |
| Grinding Discs | 270 mm × 4 |
| Power | 18.5KW |
| Water Tank | 39L |
| Drive Mode | Self Propelled / Remote Control |
| Weight | 750 kg |
| Voltage | 380V |
| Packing Size (cm) | 177 × 110 × 120 |
| Specification | Details |
| Model | GX 688-4A (Self Propelled) |
| Motor Power | 15 Kw/20 Hp |
| Working Width | 650 mm |
| Input Voltage | 380V 3P |
| Invertor Power | 15 Kw/20 Hp |
| Rotating Speed | 350-1500 rpm |
| Weight | 410 kg |
| Dimension (cm) | 124 × 74 x 132 |
| Model | GT250 |
| Motor Power | 7.5 – 11 kW |
| Voltage | 380 – 415 V |
| Grinding Width | 250 mm |
| Disc Speed | 1800 – 3600 RPM |
| Weight | 120 – 150 kg |
| Dust Port | Yes |
| Application Area | Concrete Surface Scarifying & Roughening |
| Frame Material | Heavy-duty Mild Steel |
| Operation | Walk Behind / Manual Control |
| Model | GT630 |
| Grinding Width | 630 mm |
| Motor Power | 4 – 5.5 kW |
| Voltage | 220 – 415 V |
| Speed Range | 300–600 RPM |
| Working Pressure | Adjustable |
| Tool Holder | Magnetic / Quick Change Holder System |
| Weight | 180 – 220 kg |
| Application | Concrete Floor Grinding & Surface Preparation |
| Dust Port | Yes (vacuum compatible) |
| Model | GT330 |
| Motor Power | 3 – 4 kW |
| Voltage | 220 – 415 V |
| Grinding Width | 330 mm |
| Disc Speed | 300–1800 RPM |
| Number of Discs | 3 |
| Weight | 120-150 kg |
| Water Tank Capacity | 10-15L |
| Application | Concrete Floor Grinding & Polishing |
| Usage | Small to Medium Area Floor Preparation |
| Model | HTG-460 |
| Grinding Width | 460 mm |
| Motor Power | 4 – 5.5 kW |
| Voltage | 220V / 415V |
| Phase | Single / Three Phase |
| Rotation Speed | 300–1800 RPM |
| Tool Holder Type | Magnetic Plate |
| Water Tank Capacity | 15-20 Liters |
| Machine Weight | 150-180 kg |
| Application | Concrete Floor Grinding & Polishing |
| Specification | Details |
| Model | 580-2 |
| Disc Diameter | 580 mm |
| Motor Power | 7.5 Kw/10 Hp |
| Voltage | 380V 3P |
| Speed | 1460 rpm |
| Weight | 175 Kg |
| Invertor Power | 4 Kw/5.5 Hp |
| Dimension (mm) | 830 × 640 × 1200 |
Topall Impex is leading Best Manufacturer of Concrete Processing Machine in India Our concrete cutter could be easily operated on cutting concrete and asphalt floor of road, bridge, parking lot, square, factories house floors and so on. The Concrete Polishing Machine we make includes creative polishing technology that assures high precision each and every time. Our machines are designed with diamond-embedded polishing pads serving to give exceptionally good results in grinding, honing, and polishing concrete surfaces. The multi-head design is adjustable, making it versatile with respect to functionality; hence, a user may easily toggle between different levels of polishing, from very coarse surface preparation to high-gloss finishing. This type of pad, due to its high rotational speed, ensures very fast and even scratch removal for the surface, making it very smooth with a uniform texture. The generation of minimal dust keeps your workplace much cleaner while you work out higher-quality polishing. Thanks to all these advantages, our machine provides an ultimate opportunity to receive professional-grade polished surfaces.
Our company's Concrete Polishing Machine is driven with an effective and powerful electrical motor that provides the applied torque and speed for adequate grinding. The motor must keep the polishing heads regularly turning in heavy work application situations or during long intervals. High-performance design permitting the immediate execution of polishing when substantial project timelines are badly affected. While powerful, the motor is energy-efficient to make sure that operational costs remain as low as possible due to minimal electricity consumption. The motor is durable, reliable, and has inbuilt cooling systems that will prevent overheating, therefore being a very reliable choice for contractors dealing with large-scale flooring projects.
Our Concrete Polishing Machine considers the convenience of the operator in its operation and comfort during long processes. The machine has handles with an ergonomic design for a firm and comfortable grip for better control. It features intuitive buttons and levers that make operation quite easy even without extensive training or experience. Its lightweight yet sturdy body will be able to keep it moving across the workspace, while the addition of wheels will make steering and transporting even easier. It has clear and precise setting of controls to quickly change pad speed or pressure, enhancing machine flexibility when working under diversified conditions. These make operation easy; hence, productivity is improved with reduced operator fatigue.
