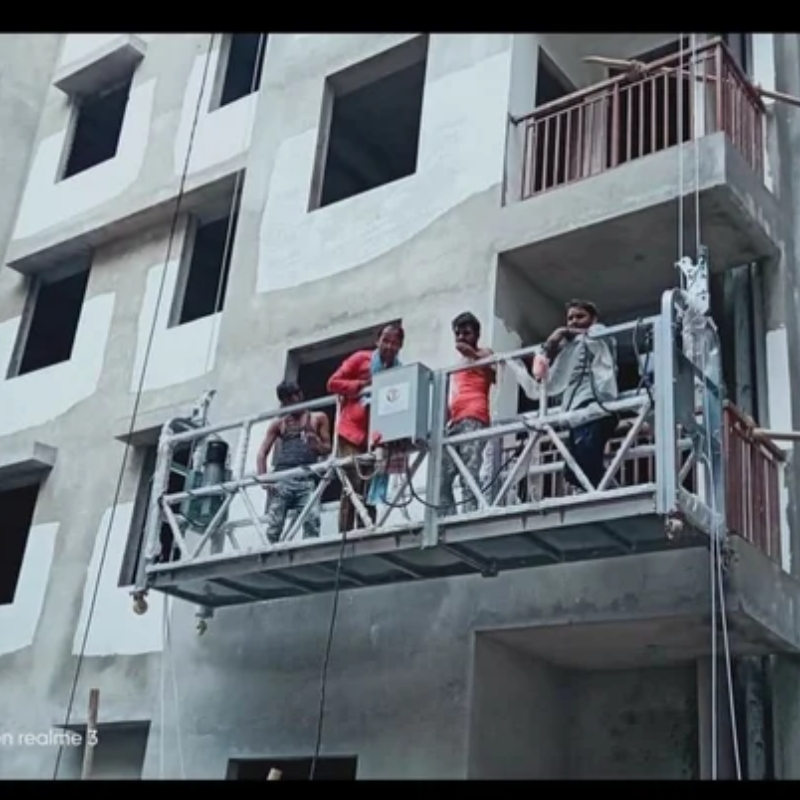

Gondola Platform
It is a separate mechanical unit, which automatically locks safety wire rope when the working wire rope breaks or suspended platform tilts to its limits. Gondola Platform are innovative, versatile equipment that provide temporary working surfaces at height. Most of the platforms are suspended with the use of strong ropes or cables, supported by strong motors and safety systems, and are mainly applied in construction, maintenance, painting, cleaning, and repair works on high-rise buildings and structures. It allows workers to work at the required height safely and efficiently, which makes the platform ideal for use instead of traditional scaffolding. The suspended platform comes with a lightweight base and durable materials that allow for easy installation. They also provide improved mobility and flexibility in projects where levels are to be reached on height. Their vertical and horizontal movements make it possible to position any point on a façade or building with precision. With a suspended platform, such works as façade cleaning, maintenance of buildings, painting at exteriors, and even the installment of glass panels become easy and effective. Suspended platforms ensure that workers at height can operate safely with reduced setup time and effort compared to traditional methods.
Technical Variants
| Usage/Application | Working Platform |
| Balance Weight | 1000 Kg |
| Rated Load | 800Kgs |
| Ascend speed | 9- 10 m/min |
| Hoist Model | LTD 80 |
| Hoist Related Lifting Force | 8 KN |
| Electric Motor Voltage | AC 380V, 3-Phases (AC415V, 3-Phases ) |
| Suspension mechanism Height adjustment | 1.15 m 1.75m |
| Whole Machine Weight | 1928 Kg (Steel) 1814 Kg (Aluminum) |
| Country of Origin | Made in India |
| Model | ZLP 800 |
| Rated Load Capacity | 800 Kgs |
| Platform Length | 7.5 Mtrs (2.5 + 2.5 + 1.5 + 1 Mtr) |
| Platform Width | 2 Feet |
| Wheels | 4 Bottom Wheels + 2 Wall Support Wheels |
| Material | Hot Dip Galvanised / Powder Coated |
| Height Adjustment | 3.75 Ft to 5.75 Ft (Adjustable 100 mm) |
| Hoist Model | ZLP 800 with Electromagnetic Brake Motor (Alpha Type) |
| Hoist Power | 2.5 HP, 415V, 50 Hz |
| Hoist Quantity | 2 Nos |
| Safety Lock Type | Anti-Tilting, 30 KN |
| Safety Lock Quantity | 2 Nos |
| Control Panel Quantity | 1 No |
| Electric Cable | 2.5 mm x 5 Core, 100 Mtrs |
| Steel Wire Rope | 9.1 mm, 100 Mtrs |
| Steel Wire Rope Quantity | 4 Nos (2 Working + 2 Safety) |
Topall Impex is leading Best Manufacturer of Gondola Platform in India We are a remarkable entity, engaged in manufacturing a superior assortment of Suspended Platform. Key advantages that are associated with our Gondola Platform compared with traditional scaffolding systems while doing building work. Also, in contrast to difficult and long scaffolding settings, the setting of systems for a suspended platform requires soft setting, and at minimum, space is needed free on the ground. On-site, the possibility for enhancement in mobility during operations would serve to move the workers more effective across the entire façades of the building. Suspended platforms are also highly cost-effective, as they save labor time and material needs compared to scaffolding. Their lightweight nature also makes transportation and storage much easier. Suspended platforms also offer better safety features with advanced systems that minimize risks during elevated work.
Our Gondola Platform are also widely used in maintenance jobs of high-rise buildings, such as cleaning the glass, repairing exterior walls, and repainting of facades. In the construction industry, the use of suspended platforms is visible during the building of skyscrapers or other tall structures that must be assembled piece by piece. They have also proved extremely useful in industrial applications involving inspection and maintenance of bridges, overpasses, chimneys, silos, and oil rigs. Their applications extend to the installation projects, including the fitting of glass panels, façade cladding, and signage on high rise buildings. In those locations where access needs to be reliable, safe, and flexible, the suspended platforms mean a lot.
Other important features of our Gondola Platform include strong safety locks, fall arrest systems, emergency brakes, and wire ropes made of steel with sure suspension points. Safety mechanisms ensure that the platform stops instantly in case of power failure or a tilt for minimal risk. Besides that, our suspended platforms are designed to meet strict safety standards and adhere to international norms such as the EN 1808 safety of access equipment. Workers can also use personal safety harnesses that can be securely attached to dedicated anchor points on the platform, further enhancing safety levels during use.
